WATCH FULL CUSTOMER STORY BELOW In the fabrication industry, staying ahead of your competitors is always crucial. With continued technological advancements, businesses need a well-rounded arsenal of machinery that allows them to be the most efficient in their space. Customers want to see efficiency. If you can do a job more efficiently than your competitor,
The FlexCNC is a vertical machining center offered by Flex Machine Tools. Below are five of the many features that set this machine apart from other vertical machining centers. 1) Zero Weight Restrictions Operators rely on the table for part mobility on a standard vertical machining center, limiting the maximum table load. On a FlexCNC,

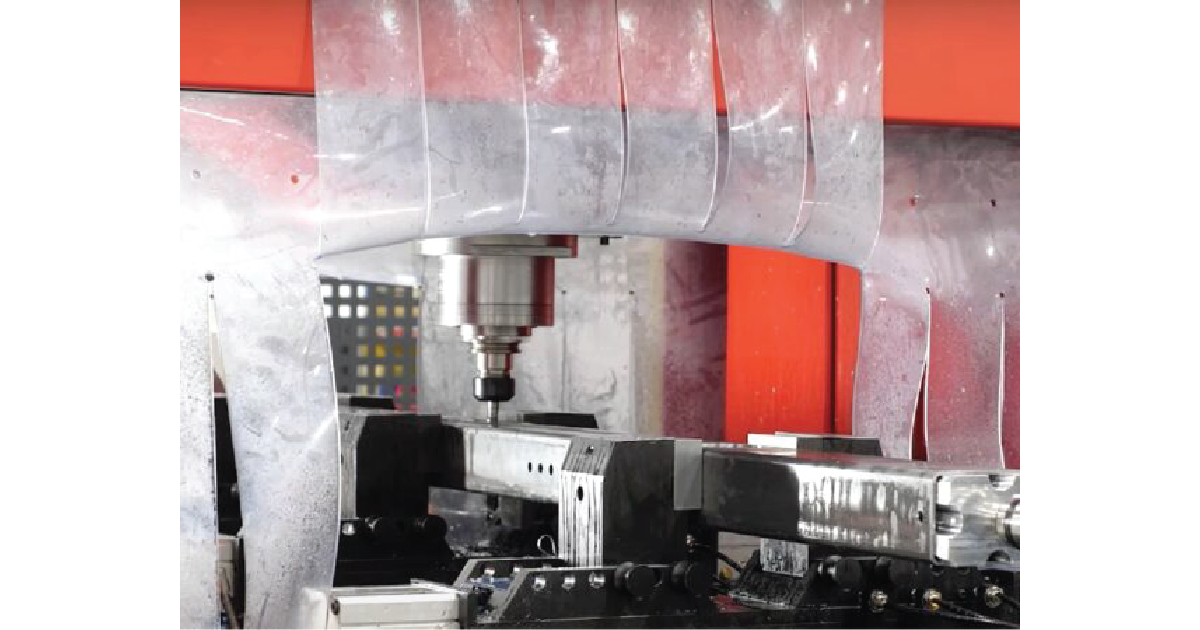

The FlexCNC can do just about everything a tube laser can do and more. Those looking for a cost-effective machine that can process tubes and other long materials should look to the FlexCNC, an affordable alternative to tube lasers.
See how easy it is to do a part setup on the FlexCNC
Many fab shops are looking to invest in CNC machines with hopes of improving their speed, production rate, and accuracy. However, most machines currently on the market are not equipped to handle, the long or large parts, being produced by many of these shops.

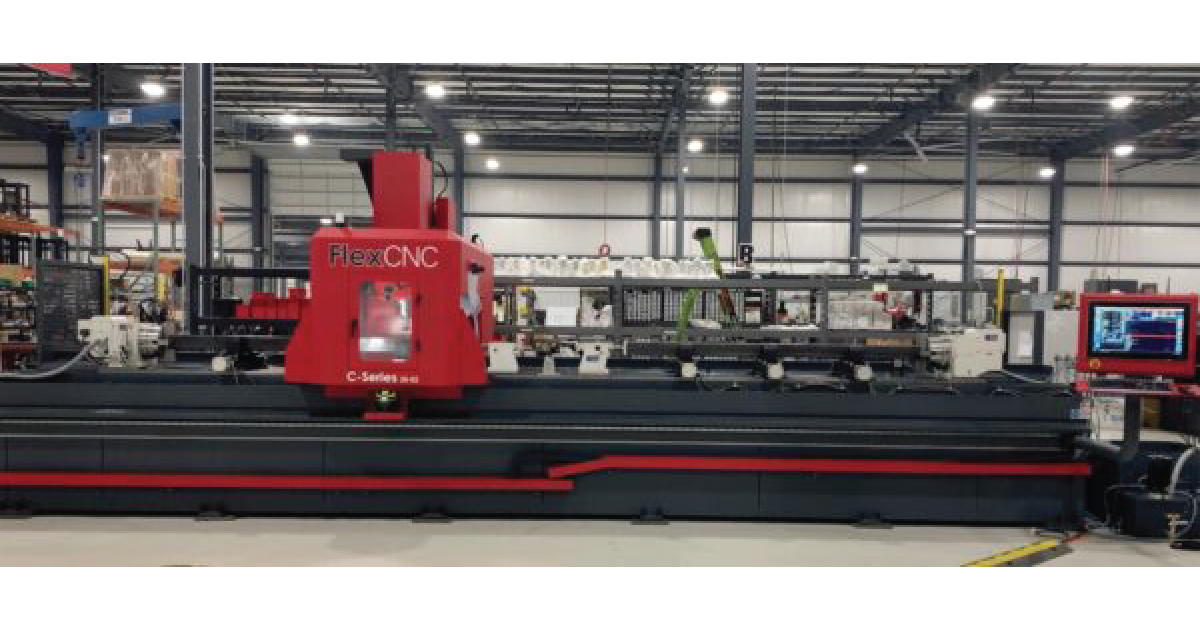

Check out some of the fastest metal removal on the planet! When you use the FlexCNC C-Series machine, you will see major savings in time and money!
HP |
Max RPM |
FT/LBS |
Series |
|---|---|---|---|
|
18 |
4000 |
92 |
C-20-02 / C-10-02 |
|
18 |
6000 |
61 |
C-20-02 / C-10-02 |
|
33 |
12000 |
61 |
CM-20-02 |
Auto Stand-Off – This is currently defined to be surface stand-off and not to be confused with vector stand-off in 5-axis mode. The current auto stand-off is based on a changing surface and will adjust vertically based on the angle of the “A” Axis, so there is five (5) axis taken into account during the calculations, but this is not the same as the tool vector stand-off. There is the ability to do the vector stand-off change while the machine is running manually with buttons on the screen.
Z-Reader Probe – The Z-Reader is a device for mapping the location of the surface. It can be controlled manually & programmatically. The option is NOT active while cutting & is retracted out of harm’s way. It can be triggered to verify the surface at every pierce before the cutting process starts, or it could be used to drive surface mapping of the whole part before cutting starts. It begins with initialization or zeroing of the device to the surface at the beginning of a program and then accumulates or tracks the difference from that zeroing effort.
Automatic Edge Finder – The edge finder is or can be utilized manually (Jogging Method & Screen Buttons), programmatically (M & G codes), or fully automatic routine (dedicated program). This option sets offsets & program rotation to match the orientation & location on the cutting table.
AC Unit Installed on Electrical Cabinet – The unit is mounted on the cabinet’s High Power (480v) side. It is close to the location where the drives are mounted. This option keeps the cabinet temperature stable and allows heat dissipation faster. The servo drives for all axes are the most significant contributors to heat inside the electrical cabinet.
5-Axis Renishaw Calibration – The calibration unit is a Renishaw model APCA45 with a modified spherical stylus. The device has a retractable cover and air purge to clear debris & dust during the activation process. It mounts to a swing arm controlled by a pneumatic rotary, so it is out of the way during regular operation and swings into the calibration position for calibration only.
HP |
Max RPM |
FT/LBS |
Series |
|---|---|---|---|
|
18 |
4000 |
92 |
G-20-06 / G-10-06 |
|
18 |
6000 |
61 |
G-20-06 / -10-06 |
|
40 |
4000 |
217 |
GM-20-06 / G-20-06 / G-10-06 |
|
40 |
6000 |
145 |
G-20-06 / G-20-06 / G-10-06 |
