FL-0404 | FL-1004 - Waterjet

  • Taperless cutting: No secondary finish required



  • Built for speed: Traverse speeds up to 1400 IPM



  • Customizable for you: Choose between our accessory options for a perfect fit for your workshop.

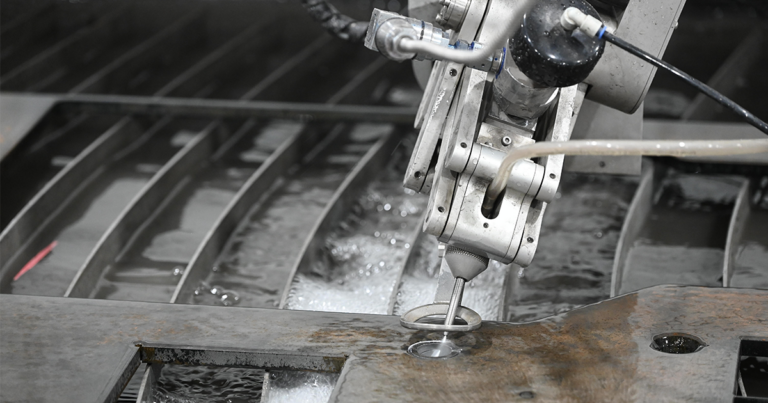

Clean cuts, complex designs:

The power of waterjet technology with the best innovative design

Product Details

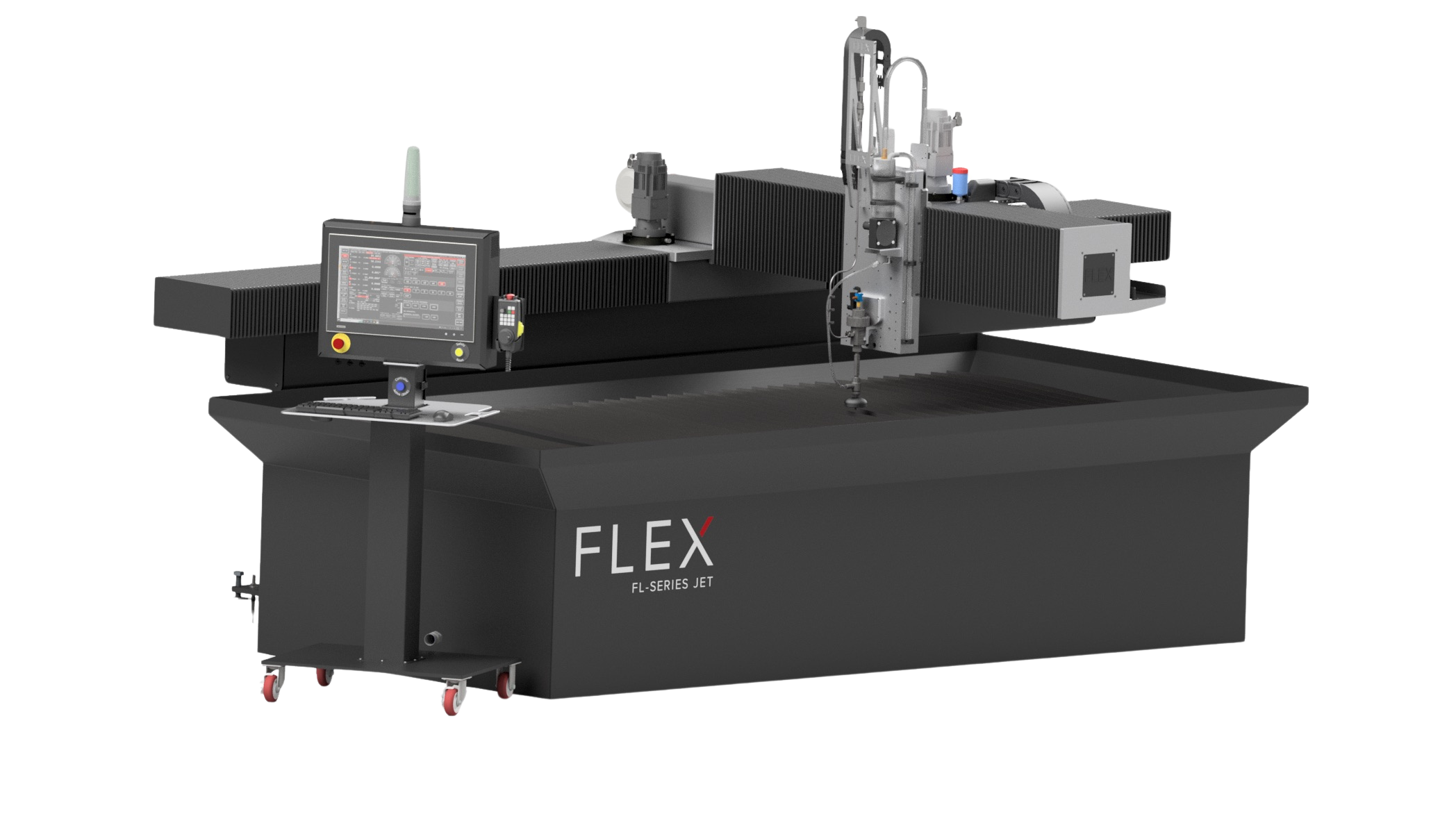

FL-Series FlexJet

The FL-Series waterjet delivers precision cutting with power and simplicity. This robust system has a feed rate of up to 1400 IPM. It tackles intricate jobs effortlessly, maximizing productivity with a user-friendly design that prioritizes your workflow. Focusing on core functionality, the FL-Series offers a high-quality, no-frills solution for reliable cutting.

Videos

Highlighted Specifications

 XYZ: 48″ / 48″ / 10″ | 120″ / 48″ / 10″
 Abrasive Cutting System
 Install, Training, 1 Year Warranty
 Repeatability ……………………………… 0.001 in
 Ballbar Circularity ………………………<0.003 in.
 Acceleration ……………………………………..0.3G
 Maximum Traverse Speed ……….1,400 in/min

Downloads

Standard Features

OPTIONS & ACCESSORIES

Standard FEATURES

OPTIONS & ACCESSORIES

OPTIONS & ACCESSORIES

Standard FEATURES

Standard Accessories

OPTIONAL EQUIPMENT

V30c EV50c EX50 KX60 MAX KX 100
Motor Power
50 HP
50 HP
50 HP
60 HP
100 HP
Output Pressure
60,000 PSI
60,000 PSI
60,000 PSI
90,000 PSI
60,000 PSI
Max Operating Pressure
55,000 PSI
55,000 PSI
55,000 PSI
85,000 PSI
55,000 PSI
Intensifier Cycle Rate
22 Cycles/Min.
at max flow rate
22 cycles/min.
at max flow rates
27 cycles/min.
at max flow rate
23.5 cycles/min.
at max flow rate
34 cycles/min.
at max flow rate
Orifice Capacity
1- 0.011 in. (0.28 mm)
2- 0.007 in. (0.17mm)
4- 0.005 in (0.12 mm)
1- 0.014 in. (0.35 mm)
2- 0.010 in. (0.25 mm)
4 – 0.007 in. (0.25 mm)
8- 0.005 in. (0.17 mm)
1- 0.014 in. (0.35 mm)
2- 0.010 in. (0.25 mm)
4- 0.007 in. (0.25 mm)
8- 0.005 in. (0.17 mm)
Qty: 1 -0.011 in.
1 – 0.020 in. (0.51 mm)
2- 0.010 in. (0.35 mm)
4- 0.007 in. (0.25 mm)
8- 0.005 in. (0.17 mm)

Multiple Cutting Heads (two heads)– Two (2) Auto Spacing Heads
Multiple Cutting Heads {four heads) – Four (4) Auto Spacing Heads

Automatic Edge Finder– Automatically aligns cutting program to match the workpiece on the table.

Z-Reader –  Automated system to measure material height.

Flex 5-Axis Head – 70° – Infinite C-Axis, Tilt up to ±70° and accurately cut difficult-to-reach places.

Tilter Head – ±45° Bevels and Taper Compensation with Auto Standoff Rounder

5-Axis CalibratorKinematic compensation calibrator  for the Tilter head



Straighter Perpendicular CallibratorPerpendicular calibration tool for for the Tilter head

Snapper Vision SystemTakes detailed and accurate photos of cutting table for optimal positioning.

CAD / CAM – A software explicitly designed for waterjet cutting, the CAD/CAM offers a user-friendly interface familiar to AutoCAD users, and includes features for both 2D and 3D design.

NESTING – Nesting is a major advantage within the software. It automatically arranges parts on sheets to minimize scrap for waterjet cutting.

HMI – The Human Machine Interface, also known as the HMI, acts as the bridge between the operator and the machine, displaying cutting tools, machine vitals, and controls.



Conventional Head

Fixed Abrasive IDE Cutting Head

Tilter Head (±45°)

45° Bevels and taper compensation with auto standoff

5 Axis Head (±70°)

 Infinite C-axis, Tilt up to ±70° and accurately cut difficult-to-reach places

ELEVATED SERVICE

ELEVATED

SERVICE

•2 4 / 7  R e m o t e  t e c h n i c i a n  s u p p o r t

U n l i m i t e d  A p p l i c a t i o n s  S u p p o r t

S e r v i c e  Te c h n i c i a n d  i s  p a t c h e d  w i t h i n  4 8  h o u r s

P a r t s  s h i p p e d  n ex t  b u s i n e s s  d a y

1 0 0 %  s p a r e  p a r t s  i n v e n t o r i e d

I n t e n s i fi e r  e x c h a n g e  p r o g r a m
