Tapping Offline to Optimize Cycle Time

Brad Jacob, from the BasementShopGuy YouTube channel, tested the FlexArm tapping arm against the Bridgeport in a time comparison demonstration.

He wanted to see if the addition of a FlexArm would speed up his tapping operations and reduce his cycle times. The time comparison revealed that the FlexArm can tap four parts in the same time it takes the Bridgeport to tap one. The FlexArm will help Jacob reduce his cycle times, and allow him to take on even more jobs.

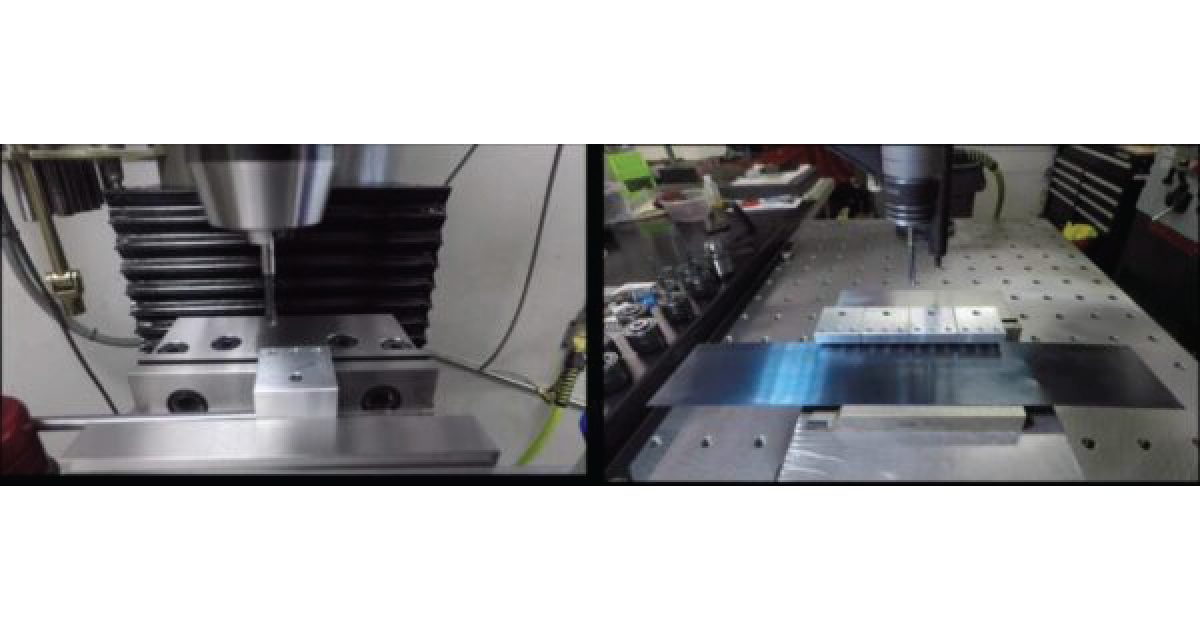

Bridgeport vs FlexArm

Watch the video below to see how efficient the A-32 FlexArm is in this time comparison demonstration.

If you are looking to speed up your cycle time and looking for a better tapping process or contact us for a quote or more information.
