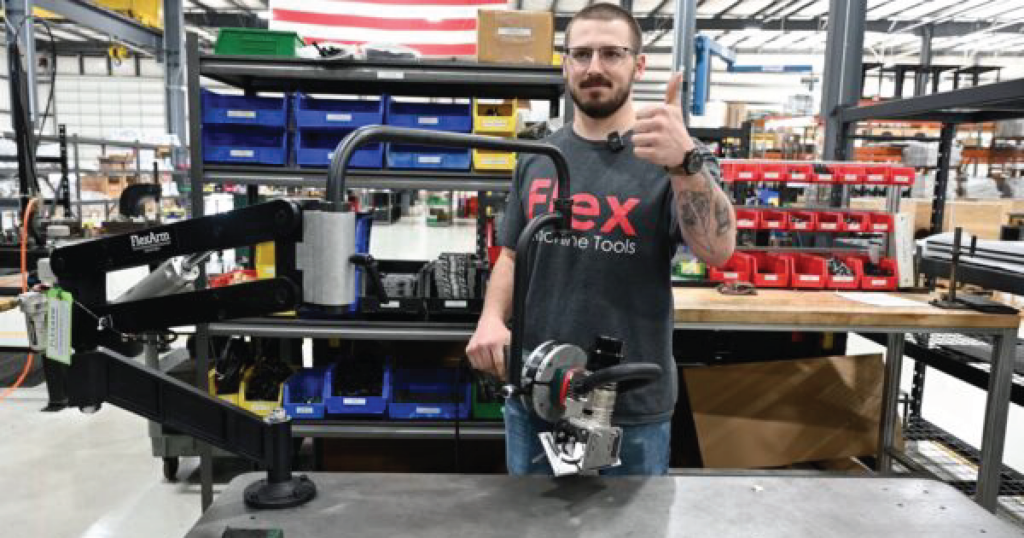

Effortless Control and Counterbalancing of Metabo Beveling Tool

Working with heavy tools like the Metabo KFM 16-15 Metal Beveling Tool can be physically demanding. Constant tool weight leads to fatigue, accidental drops, and difficulty in precise maneuvering. This impacts user comfort and safety and potentially damages expensive equipment.

Effortless Tool Operation with the B-19-RG Ergo Arm

The B-19-RG Balance Arm is a revolutionary counterbalance solution designed to transform your tool operation experience. This innovative gimbal arm boasts a 25-pound capacity, effectively counteracting the weight of your Metabo KFM 16-15 or other compatible tools. The result: a virtually weightless tool, significantly reducing fatigue and the risk of drops.

Beveling Tool

Beyond eliminating physical strain, the B-19-RG enhances tool operation. Effortless tool manipulation allows for precise bevel cuts, even in tight corners, leading to improved accuracy, efficiency, and overall workshop safety.

Customizable Solutions for Diverse Needs

The B-19-RG Ergo Arm’s true strength lies in its versatility. This customizable counterbalance system isn’t limited to the Metabo KFM 16-15. Our team of engineers can design solutions tailored to various tools and specific user needs. Whether you use angle grinders, drills, or other heavy equipment, we can create a custom counterbalance setup that optimizes your workflow and protects your valuable tools.

Need more reach? The B-33-RG Balance Arm offers an extended reach of 72 inches, compared to the B-19-RG’s 56 inches. This allows for greater flexibility and maneuverability, making it ideal for larger projects.

B-19 Beveling Tool
Balance Beveling Tool

Invest in Safety and Efficiency: Contact Us Today

Don’t let heavy tools hinder your productivity and safety. Contact us today to explore standard counterbalance solutions or discuss a custom design tailored to your needs. The B-19-RG Ergo Arm can transform your tool operation, making it easier, safer, and more efficient than ever before
