Counterbalancing Crimping Tool with a 360º Vertical Rotation Clamp

Watch the video of this application at the bottom of this page.

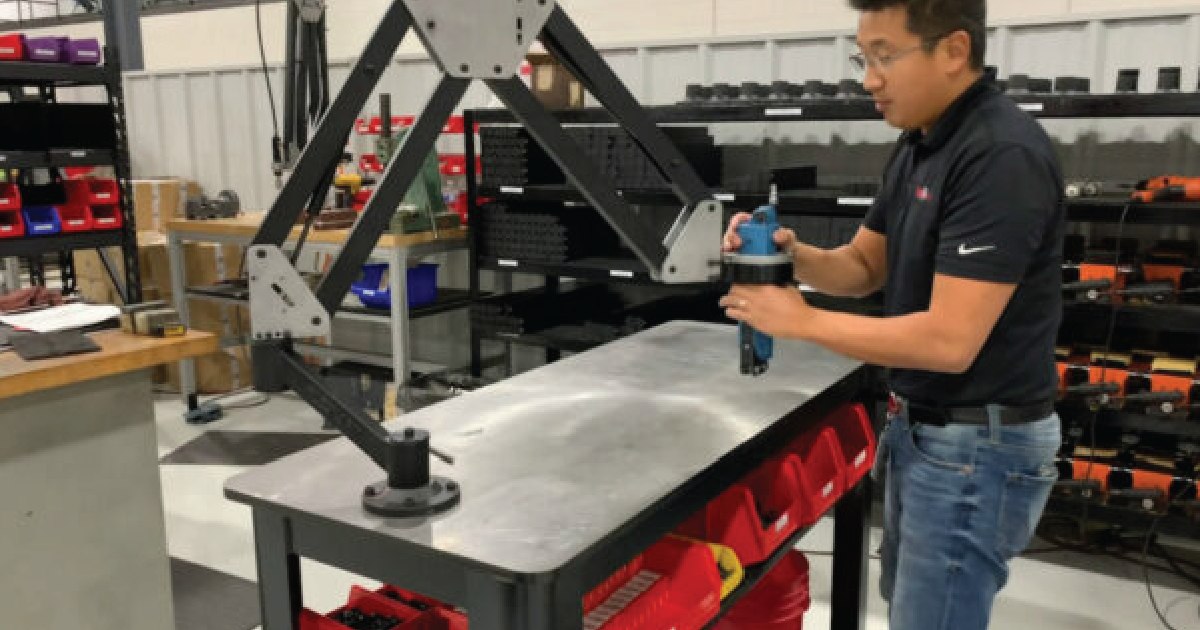

A customer was looking for a solution to counterbalance a six-pound crimper. They needed an arm that would have enough reach to hit every spot in their workstation. The S-36 arm was chosen because it has a reach of up to 51-inches. A custom tool holder with a 360-degree rotation was designed so the user could easily align the crimper to the parts

The arm is completely mechanical, so the cylinders that counterbalance the tool can be adjusted to the operator’s liking. The angled arm articulates, allowing the user to position it anywhere they need around the radius. This will further assist the operator in reaching every spot within their workstation.

Contact us today or give us a call at 1-800-837-2503, if you’re interested in a S-36 solution.
